Product Description

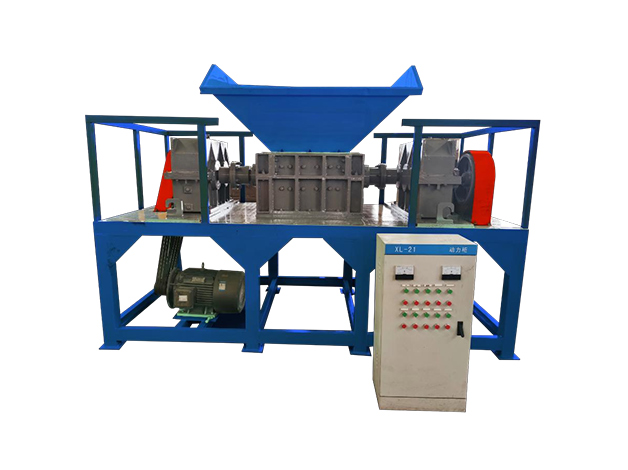

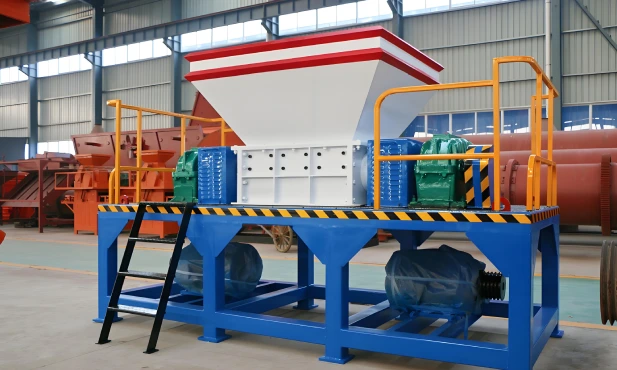

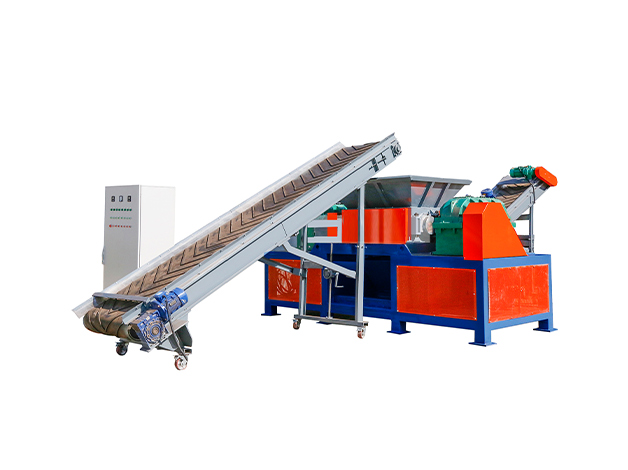

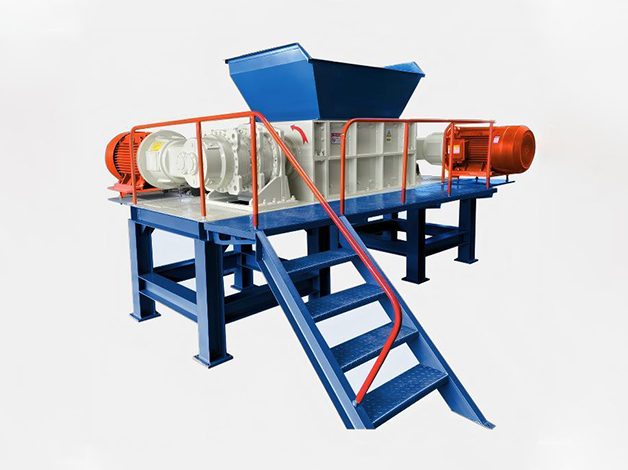

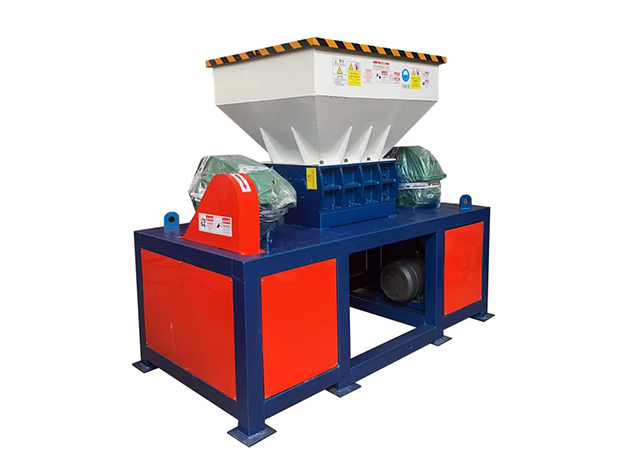

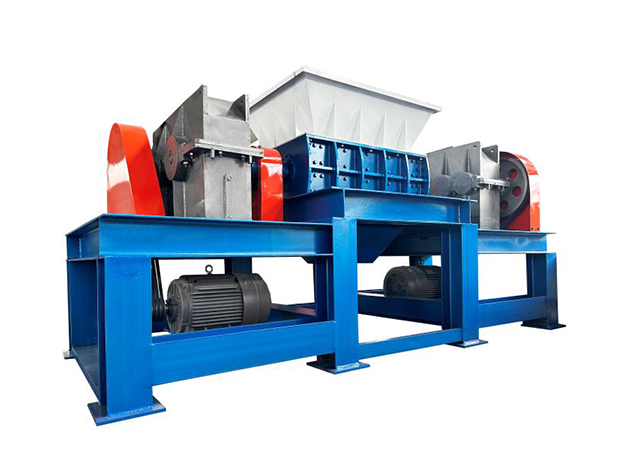

The FD series double shaft shredder is a mechanical device that reduces the size of materials through shearing, tearing, and extrusion. It boasts advantages such as a powerful processing capacity, durable cutters, an intelligent control system, and energy – saving and eco – friendly characteristics. It is widely applied in industries like solid – waste treatment, resource recycling, and the chemical industry.
At present, it has obtained multiple certifications including the EU CE. With its outstanding performance, it has been exported to numerous countries and regions around the world, such as Japan, the Philippines, Saudi Arabia, Russia, Côte d’Ivoire, and Ecuador, winning high recognition from international customers. Choosing our twin – shaft shredder means choosing an efficient, stable, and environmentally – friendly material – processing solution. Let’s work together to create a beautiful future of sustainable development.
Product Specifications
| Model | Granule Packaging Machine | Powder Packaging Machine | Ton Bag Packaging Machine | ||
| FP-G5 | FP-G50 | FP-P5 | FP-P50 | FP-T500 | |
| Packaging Scope（kg） | 0.1~10 | 10~60 | 0.1~10 | 10~60 | 500~1000 |
| Packaging Speed（bag/min） | 6~12 | 200~240 | 6~25 | 180~240 | 10~45（bag/h） |
| Packaging Accuracy | ≤±1‰ | ≤±2‰ | ≤±1‰ | ≤±2‰ | ±1‰~±5‰ |
| Power （kW） | 2 | 0.92 （excluding air compressor） | 5 | 1.67 （excluding air compressor） | Be based on reality. |
| Air Pressure （Mpa） | / | 0.6 | / | 0.6 | 0.4 – 0.6 |
| Note | Customizable. According to customers’ requirements, the drawings will be redesigned and non-standard products will be manufactured. | ||||

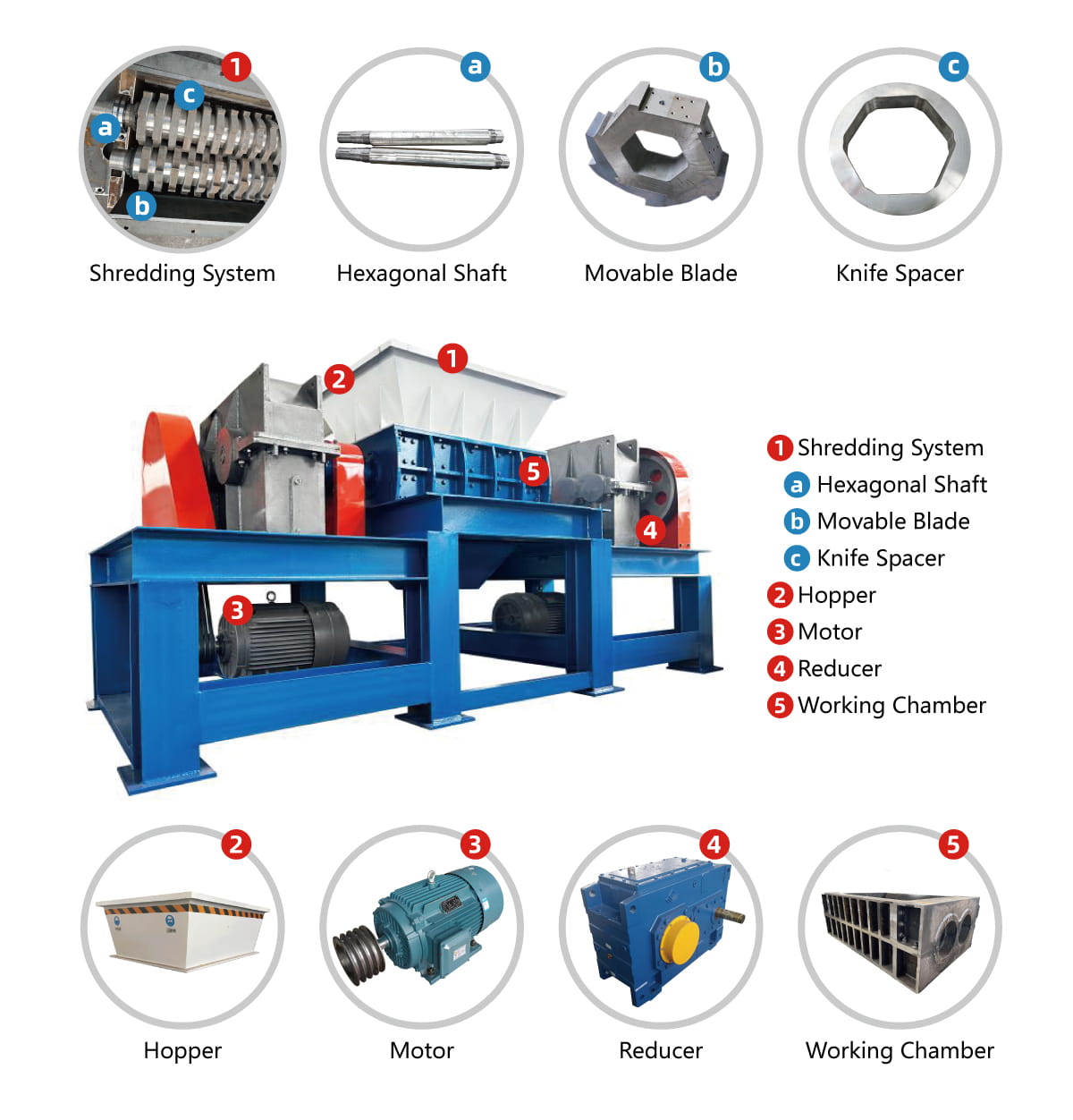

Composition and Structure
01
Movable Blade and Knife Spacer
The movable blade and knife spacer are made of 55SiCr, which endows them with high toughness and strength, significantly expanding the variety of materials that can be processed.
The movable blade and knife spacer are alternately installed on the main shaft, maintaining a certain gap and angle between each other to achieve the best shredding effect.
02
Hexagonal Shaft
As the carriers of the blades, each piece of equipment is equipped with two hexagonal shafts. They are made of carbon steel to extend their service life.
The blades are precisely installed on the hexagonal shafts and connected to the machine body through high – precision bearings to ensure stability and reliability during high – speed rotation.
03
Shredding Chamber
The shredding chamber is mostly rectangular. Since most of the shredded materials are hard, the shredding chamber is made of high – strength alloy to ensure that the impact of materials will not damage the inner wall of the equipment.
04
Power System
It consists of the motor, speed reducer, coupling, etc.
The motor provides power. The speed reducer reduces the high rotational speed of the motor to a speed suitable for the rotation of the main shaft and simultaneously increases the torque to meet the force required for shredding materials.
The coupling is used to connect the motor, the speed reducer, and the main shaft to ensure the effective transmission of power.
05
PLC Control System
The PLC control system is easy to operate and has functions such as intelligent control, fault alarm, and emergency stop switch.
The brand of electrical components is Delixi. It can also be changed to brands like Siemens or Schneider according to requirements.
Product Features
Stable Structure
The main equipment is integrally processed and welded with high – quality steel plates, ensuring the stability of the equipment under long – term load.
Durable Blades
The materials of the movable blade and knife spacer are 55SiCr special alloy tool steel, which are forged into blanks, processed by precision machining, and undergo multiple heat treatments and cryogenic freezing heat treatment technology to ensure cutting performance and service life.
Robust Shaft
The hexagonal shaft is made of high – strength heavy – duty carbon steel through refined processing. It cooperates with the knives more rationally, providing a strong guarantee for cutting and shredding.
Easy Maintenance
The bearing block adopts a split – type and easily detachable installation method. With this design, components like movable blade, knife spacer and hexagonal shaft can be quickly removed, which makes it convenient to maintain and replace parts. The unique sealing structure effectively prevents metal debris from coming into contact with grease and causing contamination.
Smart Control
The equipment is equipped with an independent PLC intelligent control electrical cabinet. The overall machine system complies with CE safety standards and improves electrical safety.
Customizable
Besides factory – standardized equipment, customized products can also be provided to meet customers’ specific requirements, such as extra – large models, brands of electrical components, motor power, the number of teeth and thickness of movable blade.
